AVATA

Thermal Clip-on

LIIR

LIIR, an exclusive patented design by CONOTECH. It ensures perfect alignment of the laser and infrared axes, offering superior precision and reliability in operation.

Highly sensitive thermal imaging sensor

Equipped with a highly sensitive thermal imaging sensor, Avata excels in delivering exceptional detail recognition, even in environments with low thermal contrast such as snow, dust, smoke, fog, and haze. This capability ensures reliable performance across a range of atmospheric conditions, making it an indispensable tool for professional use.

Ultra-light, ultra-compact

The compact and lightweight design provides easier portability, balance and accuracy of the rifle, and comfort when hunting.

0.67 MOA accuracy

Avata is equipped with advanced optical design and thermal alignment software, ensuring it delivers exceptional accuracy and superior performance across various applications.

Automatic magnetic attachment

The magnifier effortlessly attaches via a magnetic system, eliminating the need for manual assembly. Enjoy immediate setup and smooth operation.

Quick charging

Experience rapid power with our quick charge feature – get 100% charged in just 1 hour.

Controller design for quick operation

The controller is engineered for quick operation, accommodating both left and right-handed users with its ergonomic design.

No rezeroing required and quickly mounted

Quickly mounted in front of your day scope to provide enhanced thermal capabilities without having to re-zero your daylight scope.

Specifications

Avata

Model
Avata 335 | Avata 635 | Avata 650 | Avata 650LIIR | Avata S50
Main Characteristics
Detector
Uncooled Vox
Detecor Resolution
384×288 | 640×512 | 1280×1024
Frame rate
50Hz
Pixel
12μm
Spectral range
8-14μm
NETD
<15mK
Optical Characteristics
Objective lens
35mm | 50mm
Magnification
1×
FOV（H×V),m@100m
13.16×9.87 | 22×17.5 | 15.4×12.3 | 30.72×24.58
Functions
Zoom
1×/2×/4×
Palettes
Multiple
Firmware update via APP
Yes
Display
Type
OLED
Resolution
1024×768 | 1920×1080
External video
WIFI
Power supply
Battery
2×18500
External power supply
5V USB-C
Operating time (at t=22°C)
7h | 6h
Physical Characteristics
Weight
450g | 450g | 460g | 460g | 590g
Dimension
67×70×147mm
Environmental Compatibility
Ingress protection rating
IP67
Operating temperature
-20℃～+50℃
Storage temperature
-40℃～+70℃
Shock resistance
7000J
Laser rangefinder
Safety class
/ | / | 1 | /
Measuring range
/ | / | 5-1200m | /
Measurement accuracy
/ | / | ±1m | /

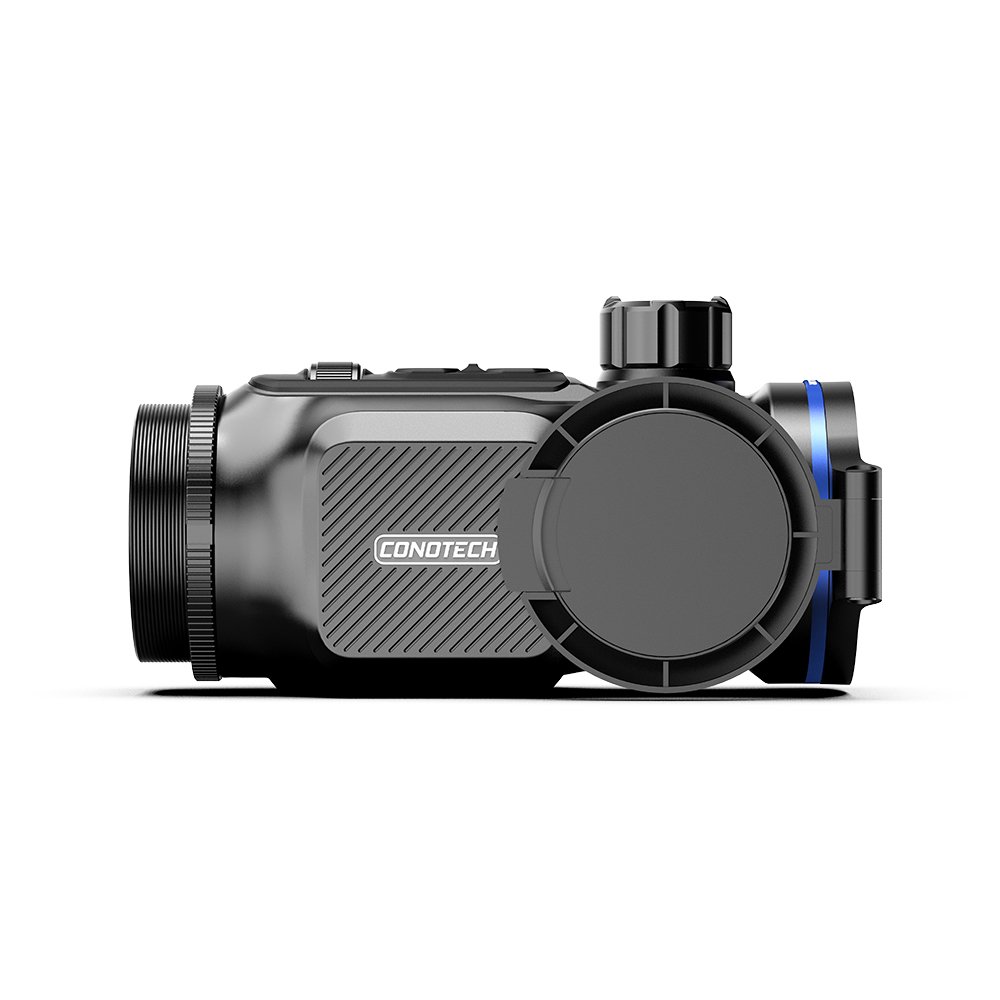

Avata

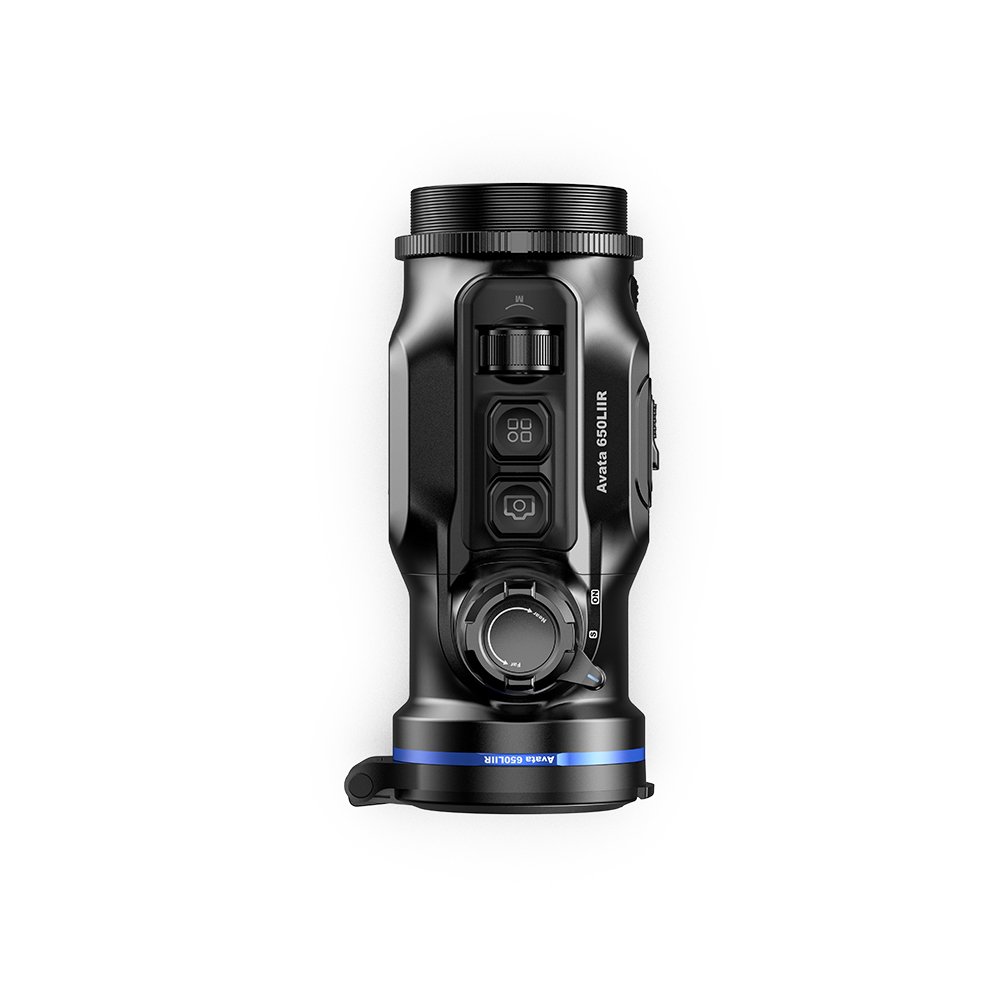

Avata - Image 2

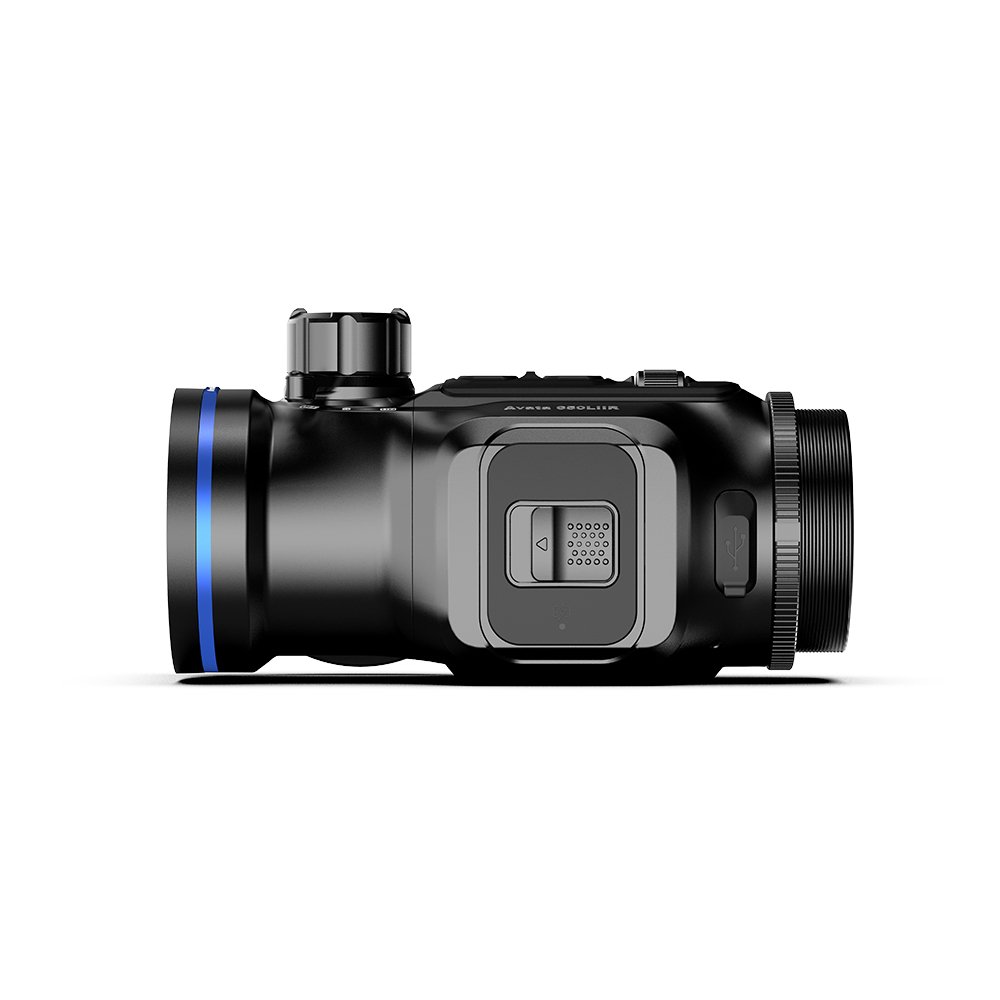

Avata - Image 3

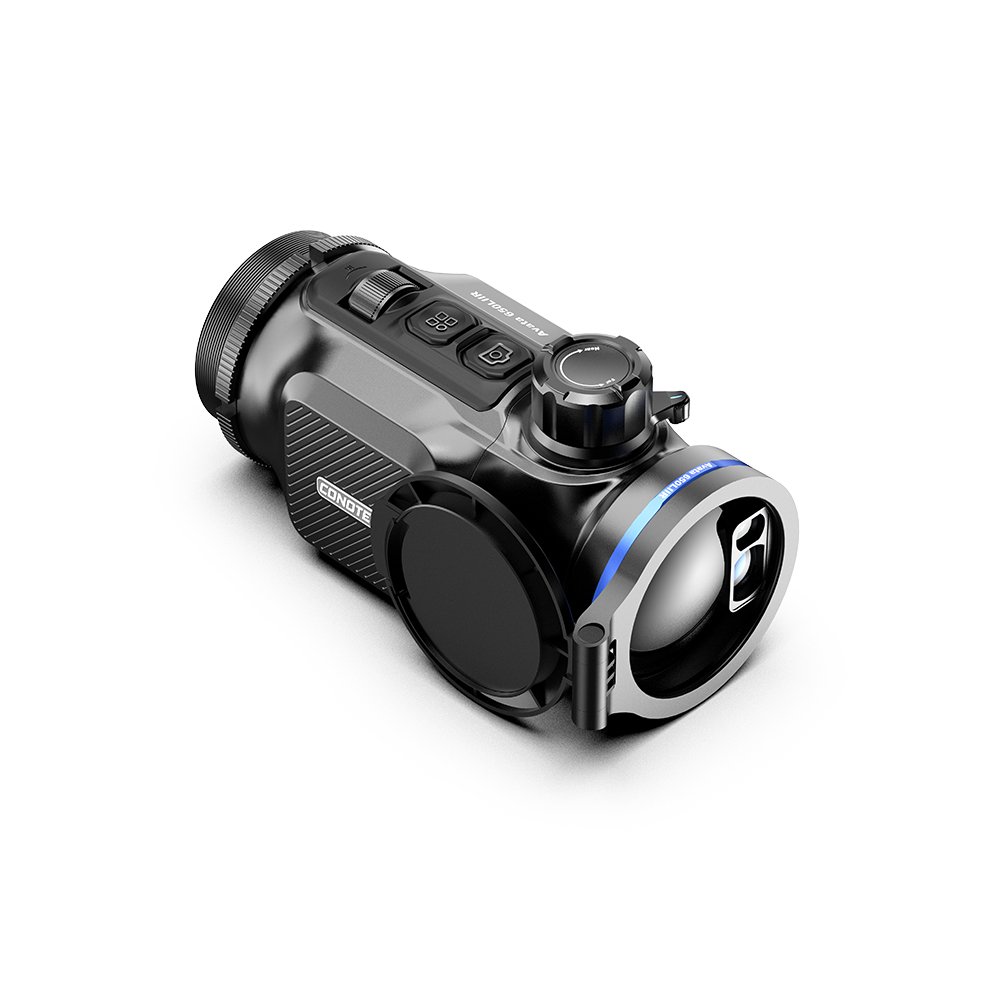

Avata - Image 4

Avata

Price range: €1.719,00 through €4.999,00

SKU N/A Category
ModelAvata 335 | Avata 635 | Avata 650 | Avata 650LIIR | Avata S50
Main Characteristics
DetectorUncooled Vox
Detecor Resolution384×288 | 640×512 | 1280×1024
Frame rate50Hz
Pixel12μm
Spectral range8-14μm
NETD<15mK
Optical Characteristics
Objective lens35mm | 50mm
Magnification1×
FOV（H×V),m@100m13.16×9.87 | 22×17.5 | 15.4×12.3 | 30.72×24.58
Functions
Zoom1×/2×/4×
PalettesMultiple
Firmware update via APPYes
Display
TypeOLED
Resolution 1024×768 | 1920×1080
External videoWIFI
Power supply
Battery2×18500
External power supply5V USB-C
Operating time (at t=22°C) 7h | 6h
Physical Characteristics
Weight 450g | 450g | 460g | 460g | 590g
Dimension67×70×147mm
Environmental Compatibility
Ingress protection ratingIP67
Operating temperature-20℃～+50℃
Storage temperature-40℃～+70℃
Shock resistance7000J
Laser rangefinder
Safety class/ | / | 1 | /
Measuring range/ | / | 5-1200m | /
Measurement accuracy/ | / | ±1m | /
