AQUILA PRO

Thermal Monocular

IF Design Award

Aquila series thermal monocular has been honored with the prestigious iF Design Award, a testament to our commitment to excellence in innovation and design.

Highly sensitive thermal imaging sensor

Equipped with a highly sensitive thermal imaging sensor, Aquila Pro excels in delivering exceptional detail recognition, even in environments with low thermal contrast such as snow, dust, smoke, fog, and haze. This capability ensures reliable performance across a range of atmospheric conditions, making it an indispensable tool for professional use.

LIIR

LIIR, an exclusive patented design by CONOTECH. It ensures perfect alignment of the laser and infrared axes, offering superior precision and reliability in operation.

One hand operation

Featuring finger wheel focusing, the device enables the pinnacle of one-handed operation. Very user-friendly for both left and right-hand users.

Comfortable for spectacle wearers

The device comes with an eyepiece adjustment mechanism, making it more user-friendly for those who wear glasses.

EYEC-II: Exclusive Algorithm

Introducing EYEC-II, CONO’s exclusive image algorithm designed to take infrared imaging to the next level. With advanced processing technology, EYEC-II delivers sharper clarity, enhanced contrast, and greater detail recognition—ensuring every observation is more precise and reliable. Experience the difference of innovation tailored for professionals.

Non-stop operation

The external battery can be replaced without interrupting the device’s functionality, ensuring continuous performance.

Quick charge

Experience rapid power with our quick charge feature-get to 90% in just one hour.

Specifications

Aquila Pro

Model
AQL PRO 635 | AQL PRO 650 | AQL PRO 650LIIR
Main Characteristics
Detector
Uncooled Vox
Detecor Resolution
640×512
Frame rate
50Hz
Pixel
12μm
Spectral range
8-14μm
NETD
<15mK
Optical Characteristics
Objective lens
35mm | 50mm | 50mm
Magnification
1.9× | 2.7× | 2.7×
FOV（H×V),m@100m
22×17.5 | 15.35×12.3 | 15.35×12.3
Functions
Zoom
1.9×-10× | 2.7×-14× | 2.7×-14×
Palettes
4
Firmware update via APP
Yes
Display
Type
OLED
Resolution
1024×768
External video
WIFI
Power supply
Battery
Dual Battery
External power supply
5V USB-C
Operating time (at t=22°C)
12h
Physical Characteristics
Weight
540g | 540g | 560g
Dimension
φ61×179 | φ61×179 | φ61×193
Environmental Compatibility
Ingress protection rating
IP67
Operating temperature
-20℃～+50℃
Storage temperature
-40℃～+70℃
Laser rangefinder
Safety class
/ | 1
Measuring range
/ | 5-1200m
Measurement accuracy
/ | ±1m

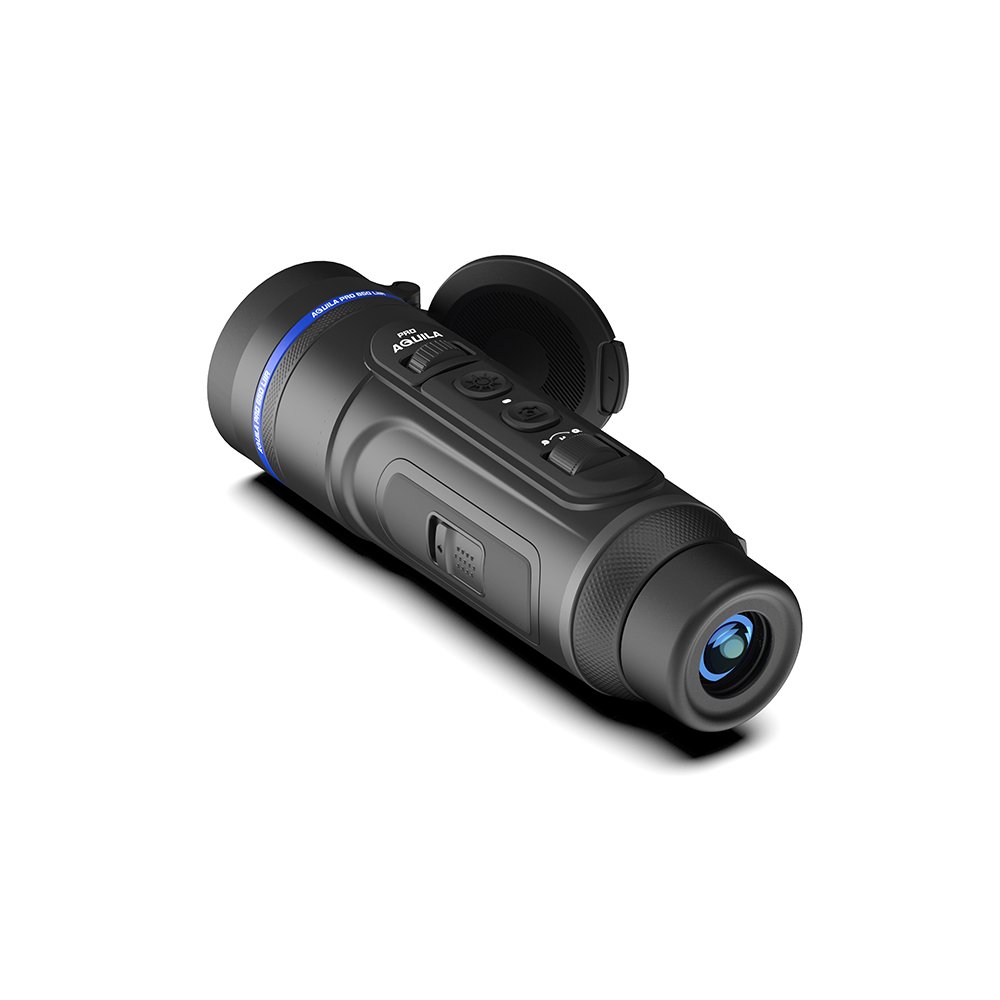

Aquila Pro

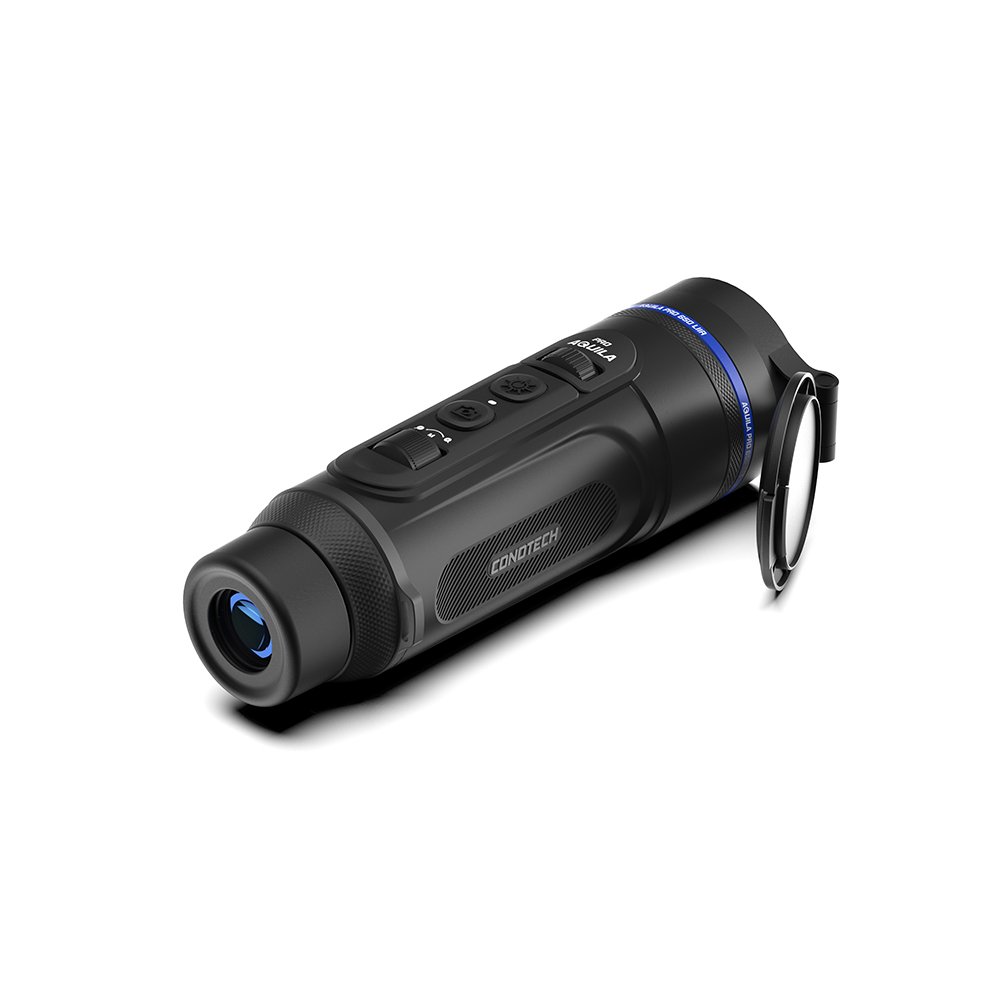

Aquila Pro - Image 2

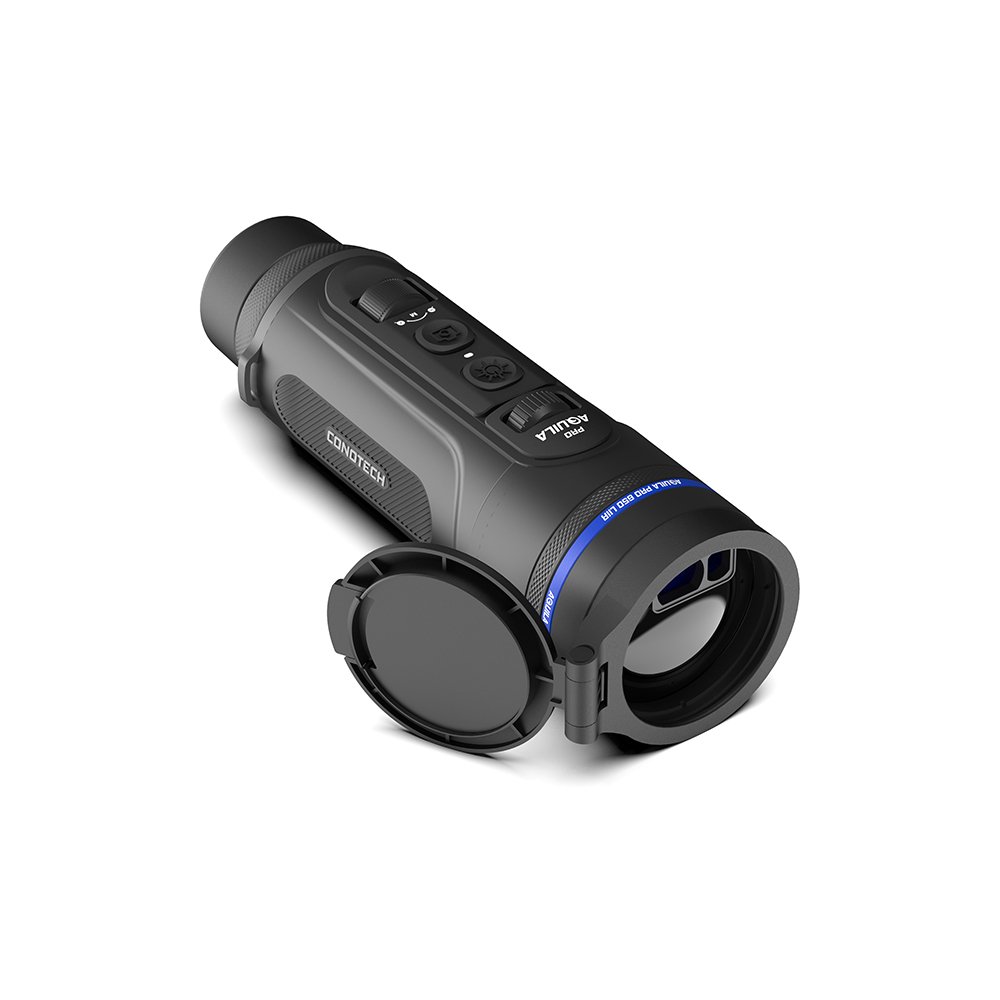

Aquila Pro - Image 3

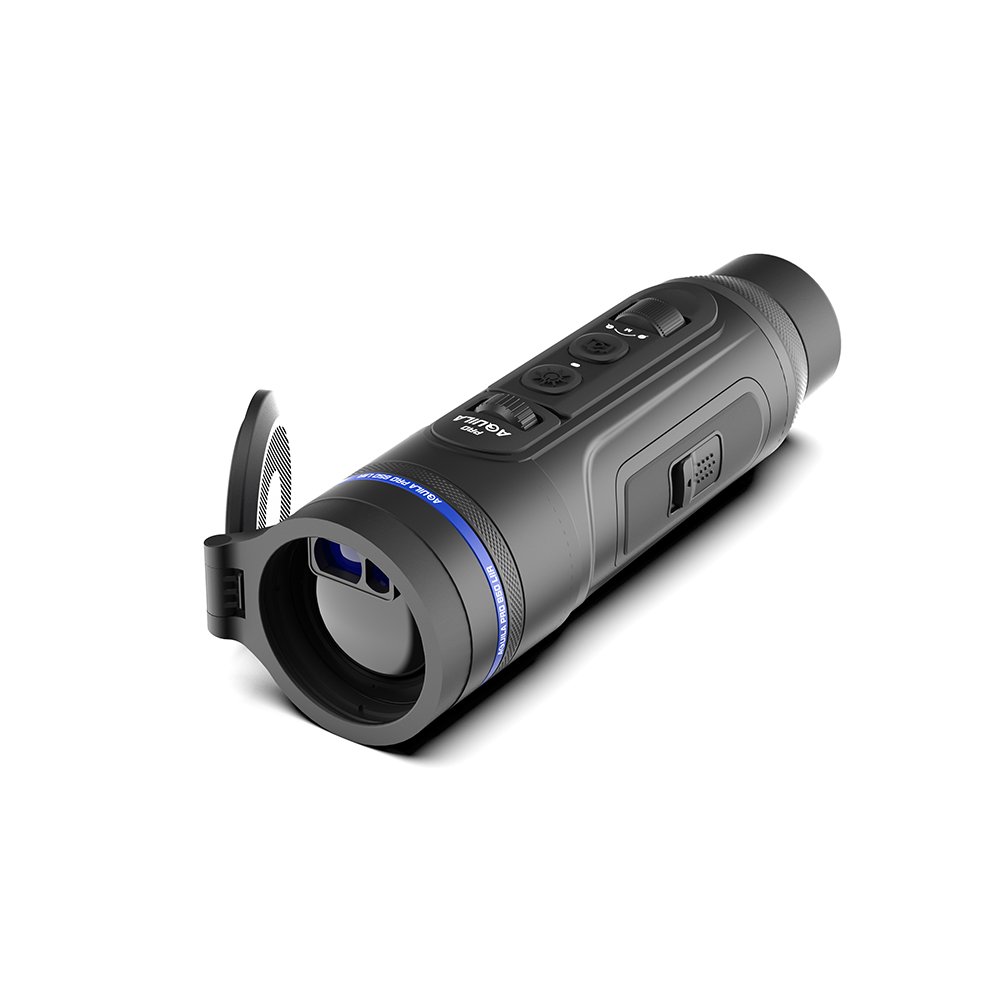

Aquila Pro - Image 4

Aquila Pro

Price range: €900,00 through €2.520,00

SKU N/A Category
ModelAQL PRO 635 | AQL PRO 650 | AQL PRO 650LIIR
Main Characteristics
DetectorUncooled Vox
Detecor Resolution640×512
Frame rate50Hz
Pixel12μm
Spectral range8-14μm
NETD<15mK
Optical Characteristics
Objective lens35mm | 50mm | 50mm
Magnification1.9× | 2.7× | 2.7×
FOV（H×V),m@100m22×17.5 | 15.35×12.3 | 15.35×12.3
Functions
Zoom1.9×-10× | 2.7×-14× | 2.7×-14×
Palettes4
Firmware update via APPYes
Display
TypeOLED
Resolution1024×768
External videoWIFI
Power supply
BatteryDual Battery
External power supply5V USB-C
Operating time (at t=22°C)12h
Physical Characteristics
Weight540g | 540g | 560g
Dimensionφ61×179 | φ61×179 | φ61×193
Environmental Compatibility
Ingress protection ratingIP67
Operating temperature-20℃～+50℃
Storage temperature-40℃～+70℃
Laser rangefinder
Safety class/ | 1
Measuring range/ | 5-1200m
Measurement accuracy/ | ±1m
